Cummins generating set 550kva standby ,50hz/60hz,engine KTA19-G3A,silent type
|
|
| Model No.︰ | NSC500S |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSC500
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
400kw/500kva
|
|
Standby Power
|
440kw/550kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
3250×1300×2100
|
|
Canopy type(mm)
|
4800×1600×2250
|
|
Engine
|
Engine Manufacturer
|
Cummins
|
|
Model
|
KTA19-G3A
|
|
Engine type
|
4 cycle, in-line, 6-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Turbocharged, and after cooled
|
|
Bore×Stroke (mm×mm)
|
159 x 159
|
|
Displacement(Liter)
|
18.9
|
|
Compression Ratio
|
13.9:1
|
|
Prime power
|
448kW/600hp
|
|
Standby Power
|
504kW/675hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Electronic governor
|
|
Total lubrication system capacity (L)
|
50
|
|
Coolant capacity (engine only) （L）
|
30.3
|
|
Fuel Consumption at 100% Prime power
|
107
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA47.2S5
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R250
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
400kw/500kva
|
|
Standby Output Power
|
456kw/570kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
|
|
|
|

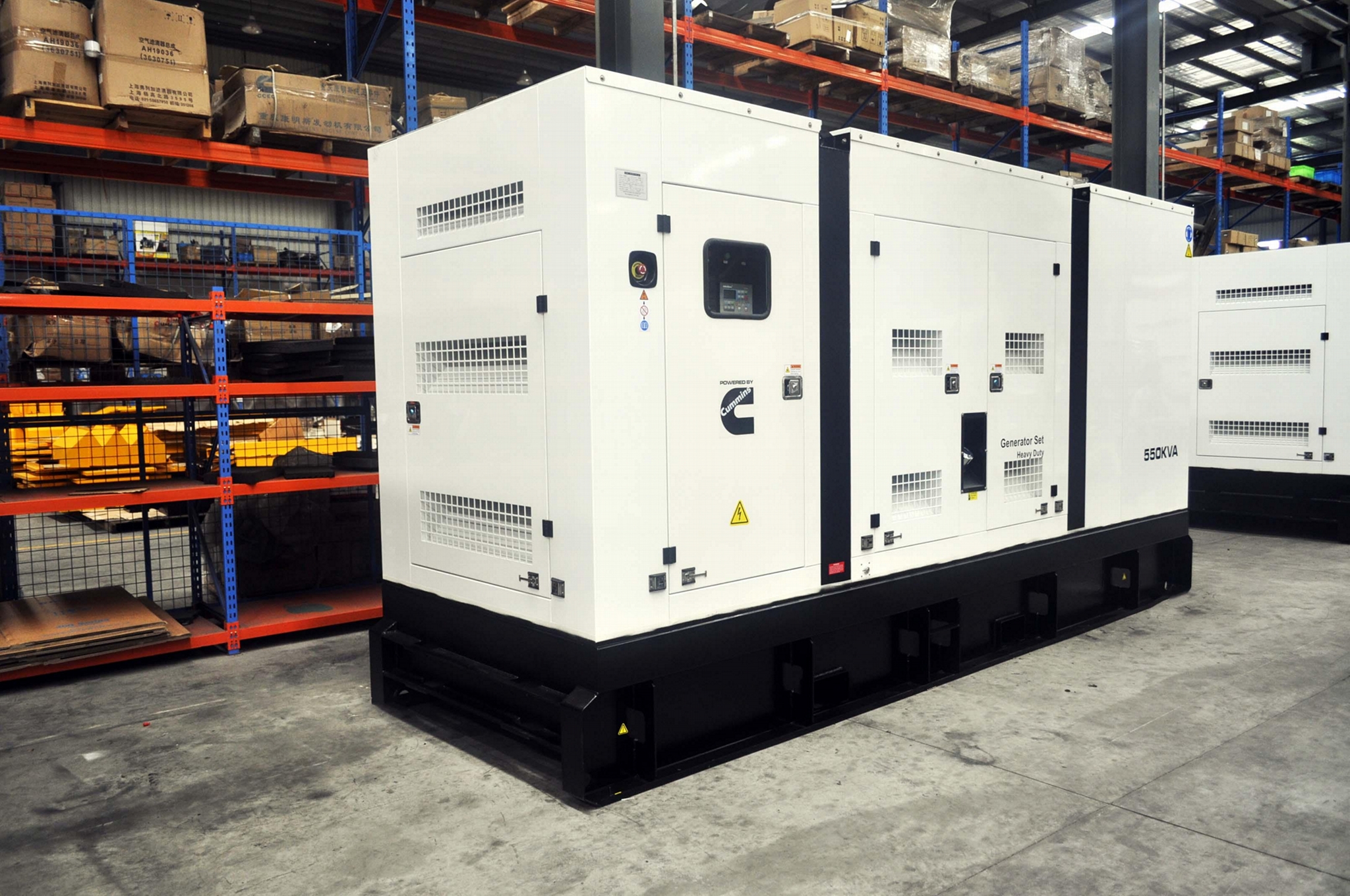

Product Image
|
|
|
