diesel generator set Cummins 80kva/64kw ,engine 6BT5.9-G1,silent type
|
|
| Model No.︰ | NSC80S |
| Country of Origin︰ | China |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSC80
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
64kw/80kva
|
|
Standby Power
|
70kw/88kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
2100×800×1450
|
|
Canopy type(mm)
|
3400×1120×1750
|
|
Engine
|
Engine Manufacturer
|
Cummins
|
|
Model
|
6BT5.9-G1
|
|
Engine type
|
4 cycle, in-line, 6-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Turbocharged
|
|
Bore×Stroke (mm×mm)
|
102 x 120
|
|
Displacement(Liter)
|
5.9
|
|
Compression Ratio
|
17.3:1
|
|
Prime power
|
86kW/115hp
|
|
Standby Power
|
92kW/123hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Mechanical governor
|
|
Total lubrication system capacity (L)
|
7.9
|
|
Coolant capacity (engine only) （L）
|
8.3
|
|
Fuel Consumption at 100% Prime power
|
21.7
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA44.3S3
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R250
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
84kw/105kva
|
|
Standby Output Power
|
93kw/116kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
|
|
|
|

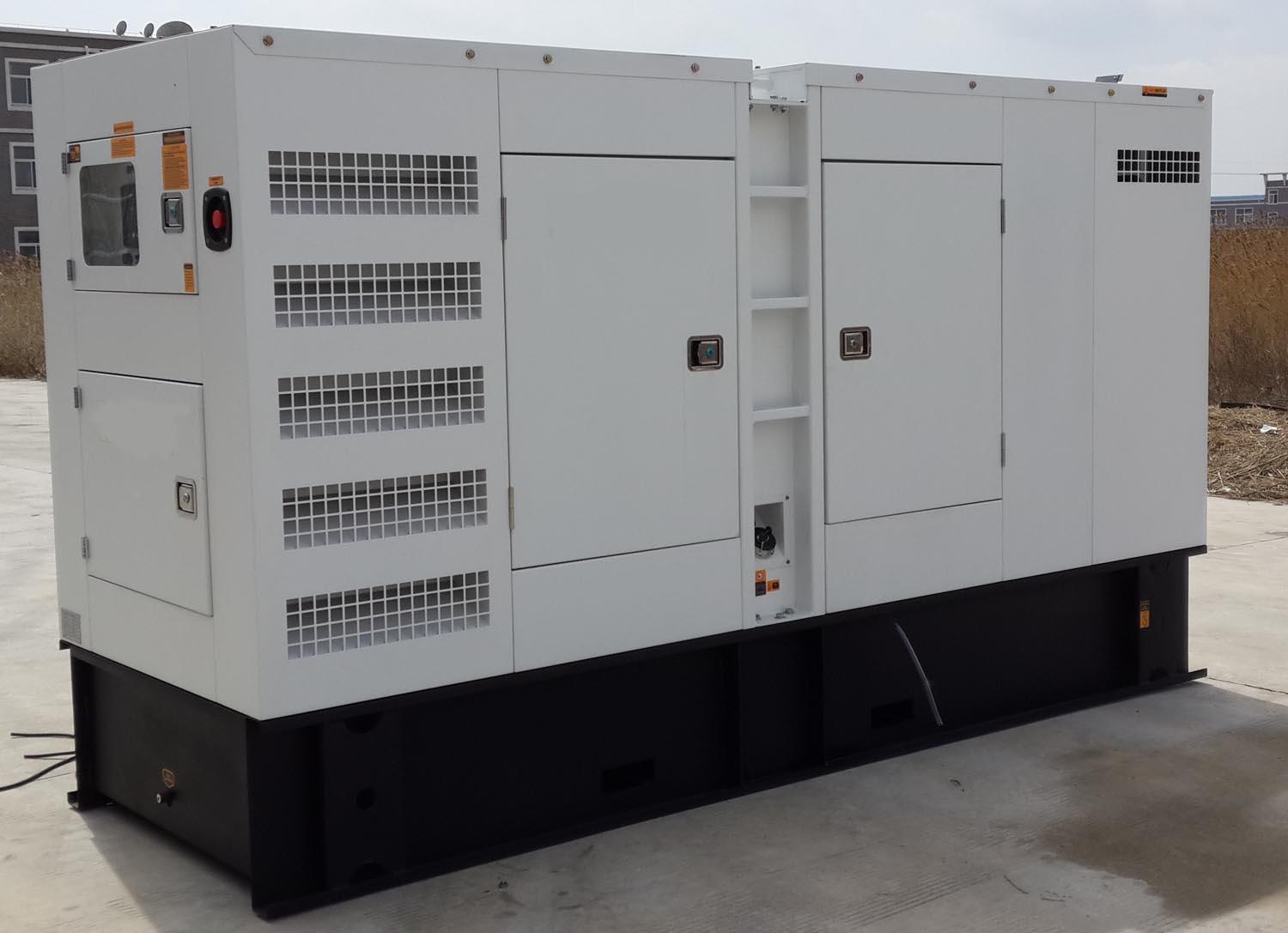

Product Image
|
|
|
