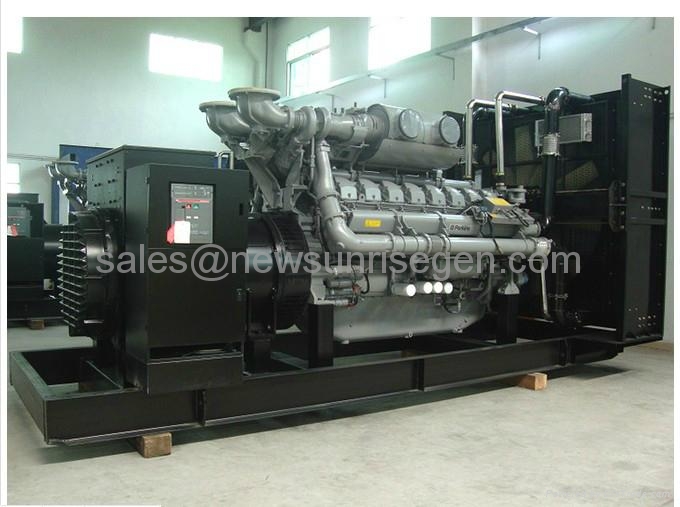

1600kw/2000kva prime,1800kw/2250kva standby,diesel generator powered by Perkins
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSP2000
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
1600kw/2000kva
|
|
Standby Power
|
1800kw/2250kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
5800×2300×3350
|
|
Canopy type(mm)
|
12192×2483×2896
|
|
Engine
|
Engine Manufacturer
|
Perkins
|
|
Model
|
4016TAG2A
|
|
Engine type
|
4 stroke, Vee 60°, 16-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Turbocharged
|
|
Bore×Stroke (mm×mm)
|
160 x 190
|
|
Displacement(Liter)
|
61.123
|
|
Compression Ratio
|
13.6:1
|
|
Prime power
|
1715kW/2300hp
|
|
Standby Power
|
1886kW/2529hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Electronic governor
|
|
Total lubrication oil capacity (L)
|
237.2
|
|
Total Cooling system capacity（L）
|
316
|
|
Fuel Consumption at 100% Prime power
|
434
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA51.2M60
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R449
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
1640kw/2050kva
|
|
Standby Output Power
|
1804kw/2255kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
