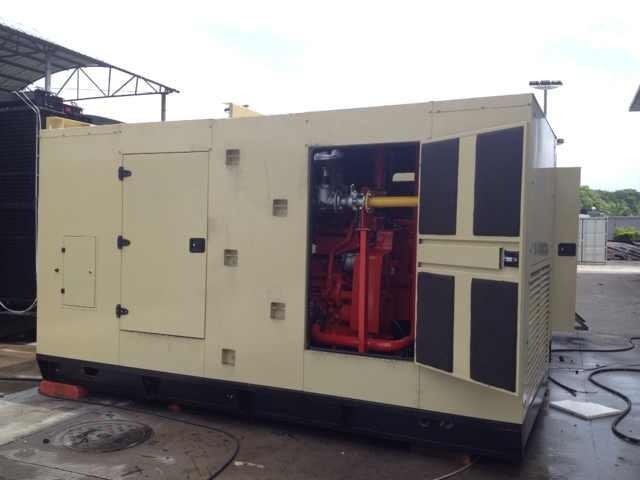

natural gas generator 250kva/200kw,Cummins engine HGNT14,with silent type,60hz

Gas genset data

Genset model

NSC250GXS

Maximal power (kW/KVA)

200/250

Prime power (kW/KVA)

180/225

Continuous power (kW/KVA)

160/200

Output Voltage (V)

220V/127V, 3 Phases 4 Lines

Power factor cosfi

0.8 lagging

Frequency (Hz)

60

Rated speed (RPM)

1800

Open type Genset Overall

Dimension (mm)

3200x1100x1800

Soundproof type Genset Dimension (mm)

4600x1600x2200

Net weight without canopy（kg）

2500

Gas Engine Data

Model

HGNT14

Brand

NSI

Type

4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning

Cylinders& Arrangement

6L

BoreXStroke (mm)

140X152

Displacement(L)

14

Compression ratio

11:1

Aspiration

Intercooled and Turbocharged

Cooling Method

Radiator

Governor type(speed regulating type)

Electronic governing

Starting method

Electric, 24 V motor

Gas consumption(m3/h)

75.9

Idling speed（r/min）

700

Oil recommended

SAE 15W-40 CF4 or above

Oil consumption

≤1.0g/kW.h

Alternator Data

Brand

Leroy Somer

Model

LSA46.2L6

Rated power

200kW / 3 phase

Rated Voltage (V)：

220~480 (±0.5%)（AC）

Type

3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type.

Frequency (Hz)

60

Efficiency：

93.6%

Voltage regulation

± 0.5 %(adjustable)

Insulation class：

Class H

Protection class:

IP 23

cooling method：

wind-cooling, self-heat-rejection

Voltage regulating mode

Automatic voltage regulator

Compliant with international standards:

IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc.
