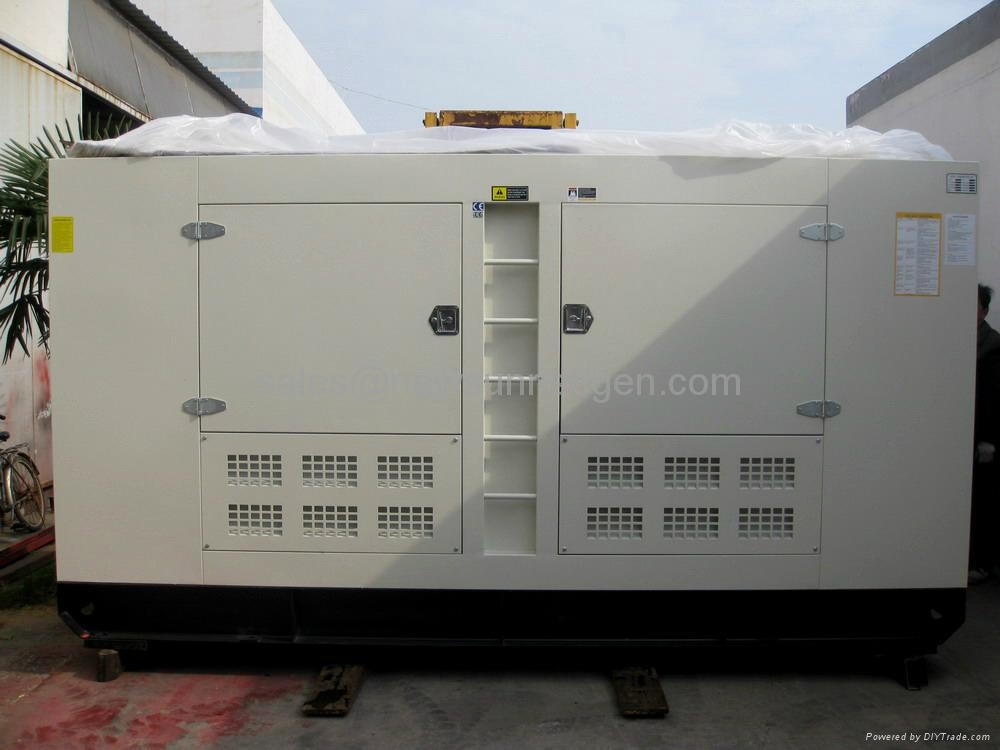

prime power 240kw/300kva,standby power 264kw/330kva diesel generator,powered by Perkins
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSP300
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
240kw/300kva
|
|
Standby Power
|
264kw/330kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
3000×1120×1700
|
|
Canopy type(mm)
|
4200×1400×2000
|
|
Engine
|
Engine Manufacturer
|
Perkins
|
|
Model
|
1606A-E93TAG5
|
|
Engine type
|
4 stroke, Vertical, In-line, 6-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Air to Air Charged Cooled, Turbocharged
|
|
Bore×Stroke (mm×mm)
|
116.6 x 146
|
|
Displacement(Liter)
|
9.3
|
|
Compression Ratio
|
17.2:1
|
|
Prime power
|
261kW
|
|
Standby Power
|
287kW
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Electronic governor
|
|
Total lubrication oil capacity (L)
|
36
|
|
Total Cooling system capacity with radiator （L）
|
15.5
|
|
Fuel Consumption at 100% Prime power
|
61
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA46.2VL12
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R250
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
252kw/315kva
|
|
Standby Output Power
|
273kw/341kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
