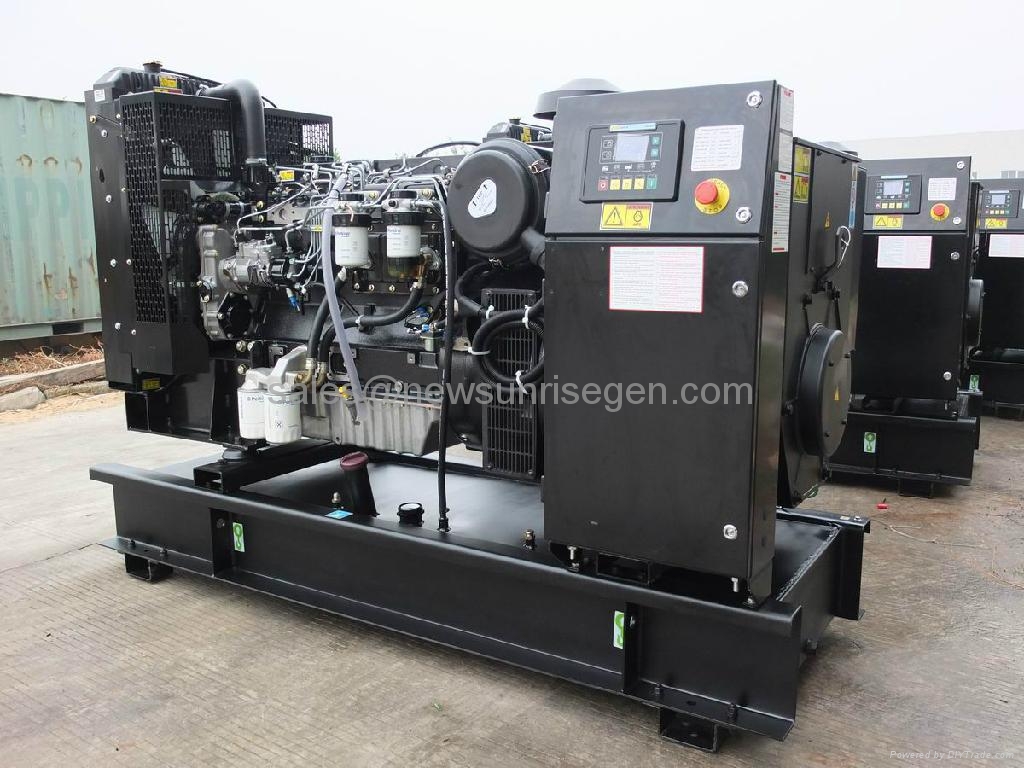

prime power 200kw/250kva,standby power 220kw/275kva diesel generator,powered by Perkins
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSP250
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
200kw/250kva
|
|
Standby Power
|
220kw/275kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
2700×1000×1650
|
|
Canopy type(mm)
|
3900×1300×1950
|
|
Engine
|
Engine Manufacturer
|
Perkins
|
|
Model
|
1306C-E87TAG6
|
|
Engine type
|
4 stroke, Vertical, In-line, 6-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Air to Air Charged Cooled, Turbocharged
|
|
Bore×Stroke (mm×mm)
|
116.6 x 135.9
|
|
Displacement(Liter)
|
8.7
|
|
Compression Ratio
|
16.9:1
|
|
Prime power
|
218kW/291hp
|
|
Standby Power
|
239kW/320hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Electronic governor
|
|
Total lubrication oil capacity (L)
|
26.4
|
|
Total Cooling system capacity with radiator （L）
|
37.2
|
|
Fuel Consumption at 100% Prime power
|
45
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA46.2L6
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R250
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
200kw/250kva
|
|
Standby Output Power
|
220kw/275kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
