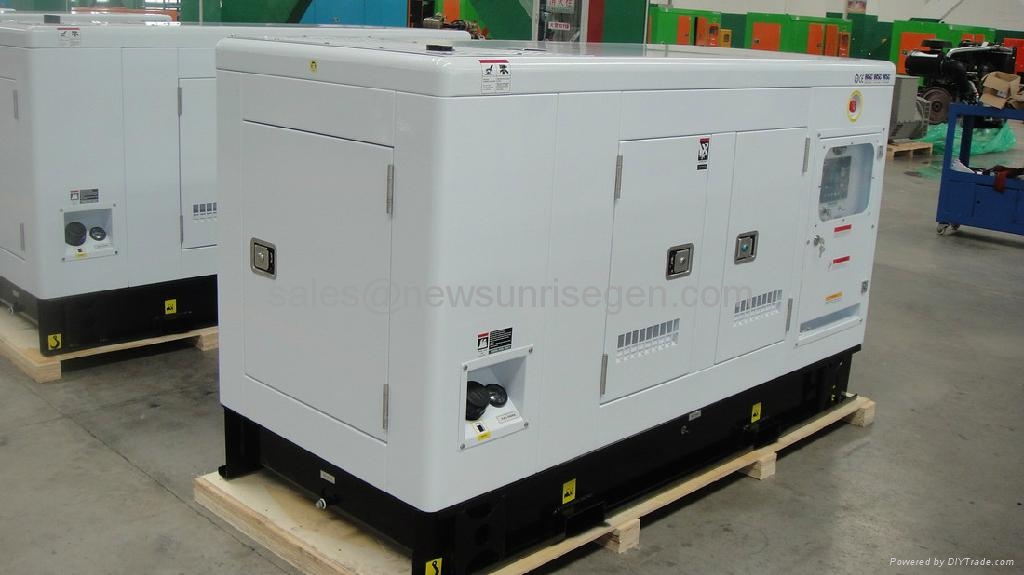

137kva/110kw prime power,diesel generator,powered by Perkins
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSP137
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
110kw/137kva
|
|
Standby Power
|
120kw/150kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
2250×820×1450
|
|
Canopy type(mm)
|
3400×1120×1750
|
|
Engine
|
Engine Manufacturer
|
Perkins
|
|
Model
|
1006-TAG
|
|
Engine type
|
4 stroke, Vertical, In-line, 6-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Turbocharged, air-to-air charge cooled
|
|
Bore×Stroke (mm×mm)
|
100 x 127
|
|
Displacement(Liter)
|
5.99
|
|
Compression Ratio
|
17.0:1
|
|
Prime power
|
152kW/167.5hp
|
|
Standby Power
|
137.5kW/184.5hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Electronic governor
|
|
Total lubrication system capacity (L)
|
19
|
|
Coolant capacity (with radiator) （L）
|
37.22
|
|
Fuel Consumption at 100% Prime power
|
31.5
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA44.2S75
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R250
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
108kw/135kva
|
|
Standby Output Power
|
120kw/150kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
