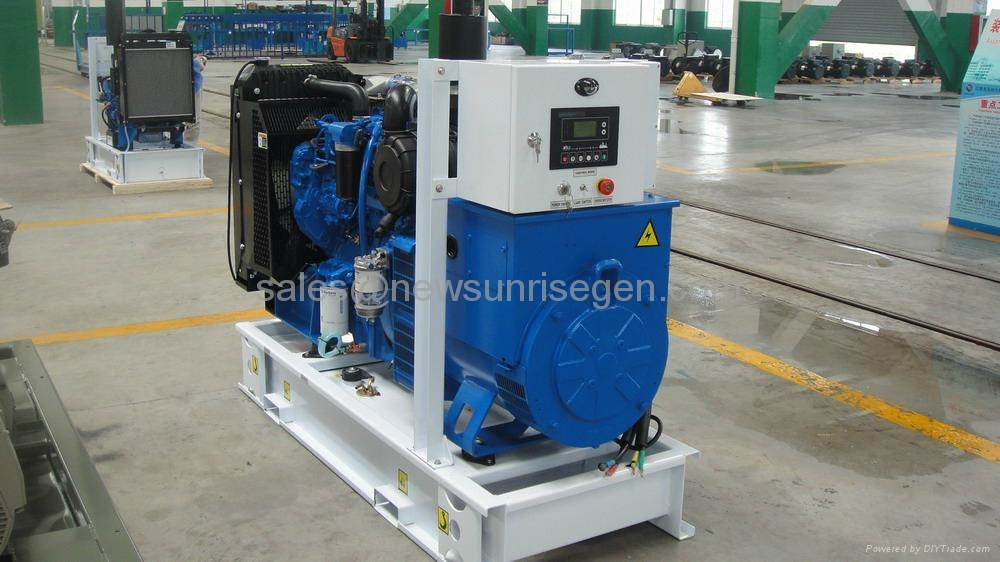

24kw/30kva prime,diesel generator,powered by Perkins
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSP30
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
24kw/30kva
|
|
Standby Power
|
26.4kw/33kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
1600×730×1200
|
|
Canopy type(mm)
|
2250×1000×1350
|
|
Engine
|
Engine Manufacturer
|
Perkins
|
|
Model
|
1103A-33G
|
|
Engine type
|
4 stroke, Vertical, In-line, 4-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Naturally Aspirated
|
|
Bore×Stroke (mm×mm)
|
105 x 127
|
|
Displacement(Liter)
|
3.3
|
|
Compression Ratio
|
19.25:1
|
|
Prime power
|
27.7kW/37.1hp
|
|
Standby Power
|
30.4kW/40.8hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Mechanical governor
|
|
Total lubrication system capacity (L)
|
8.3
|
|
Coolant capacity (with radiator) （L）
|
4.4
|
|
Fuel Consumption at 100% Prime power
|
7.9
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA42.3VS3
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R220
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
25.6kw/32kva
|
|
Stamdoby Output Power
|
28.2kw/35.2kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
