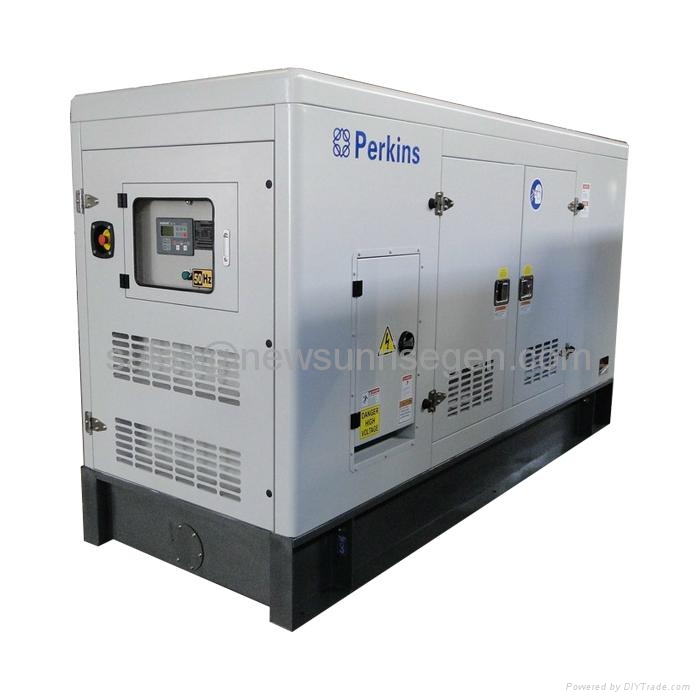

60kva prime power,diesel generator,powered by Perkins.
|
Technical Spec
|
|
Genset
|
Manufacturer
|
New Sunrise
|
|
Model
|
NSP60
|
|
Frequency
|
50hz
|
|
Power
|
Prime Power
|
48kw/60kva
|
|
Standby Power
|
53kw/66kva
|
|
Dimension(LxWxH)
|
Open type(mm)
|
1650×730×1250
|
|
Canopy type(mm)
|
2700×950×1450
|
|
Engine
|
Engine Manufacturer
|
Perkins
|
|
Model
|
1103A-33TG2
|
|
Engine type
|
4 stroke, Vertical, In-line, 4-cylinder
|
|
Engine speed
|
1500rpm
|
|
Air intake way
|
Turbocharged
|
|
Bore×Stroke (mm×mm)
|
105 x 127
|
|
Displacement(Liter)
|
3.3
|
|
Compression Ratio
|
17.25:1
|
|
Prime power
|
53.8kW/72.1hp
|
|
Standby Power
|
59.3kW/79.5hp
|
|
Cooling system
|
Water cooled
|
|
Speed Governor
|
Mechanical governor
|
|
Total lubrication system capacity (L)
|
8.3
|
|
Coolant capacity (with radiator) （L）
|
10.2
|
|
Fuel Consumption at 100% Prime power
|
13.9
|
|
Alternator
|
Manufacturer
|
Leroy Somer
|
|
Model
|
LSA42.3L9
|
|
Rated voltage
|
400/230V
|
|
AVR model
|
R220
|
|
Excitation
|
Shunt
|
|
Power factor
|
0.8
|
|
Prime Output Power
|
48kw/60kva
|
|
Stamdoby Output Power
|
53kw/66kva
|
|
Insulation class
|
H
|
|
Drip proof
|
IP23
|
